Drawing class diagrams in Eclipse using AmaterasUML plugin

Install the GEF plugin

Open the eclipse website https://www.eclipse.org/

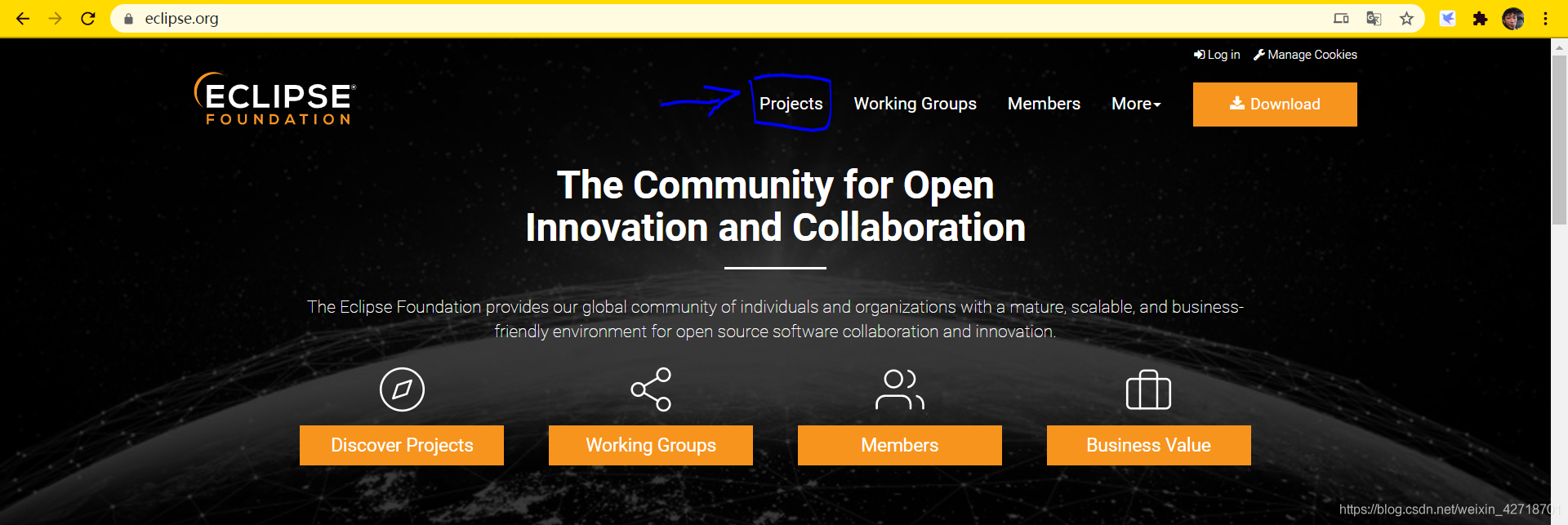

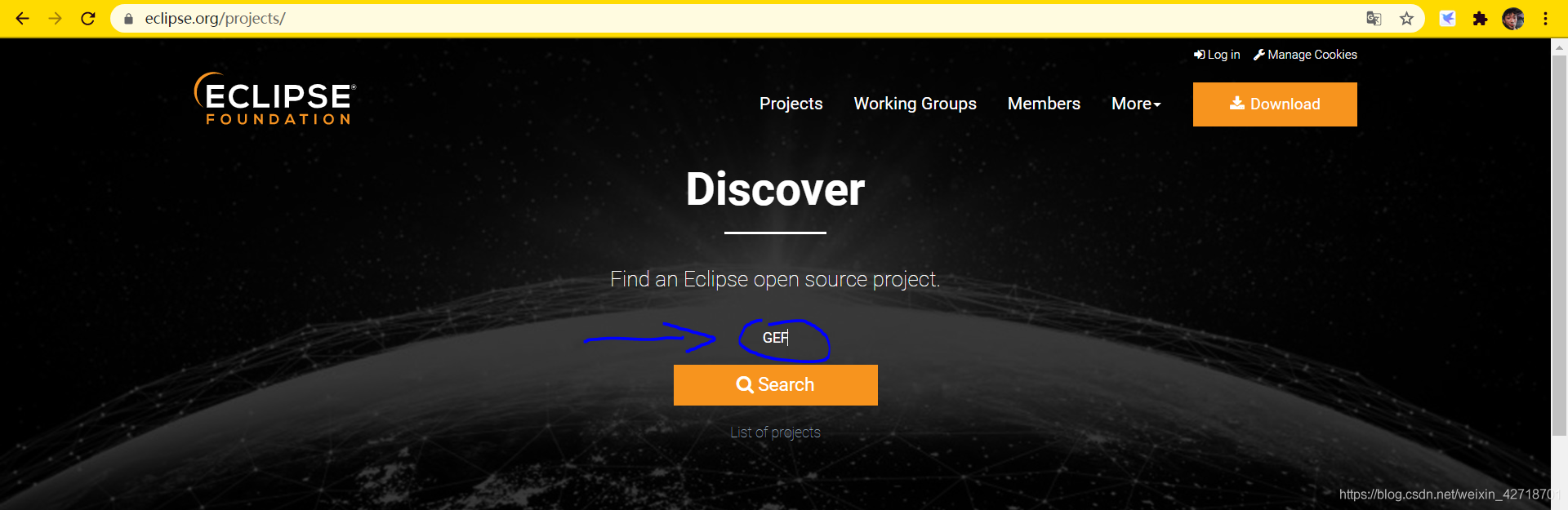

Click on Projects and search for GEF

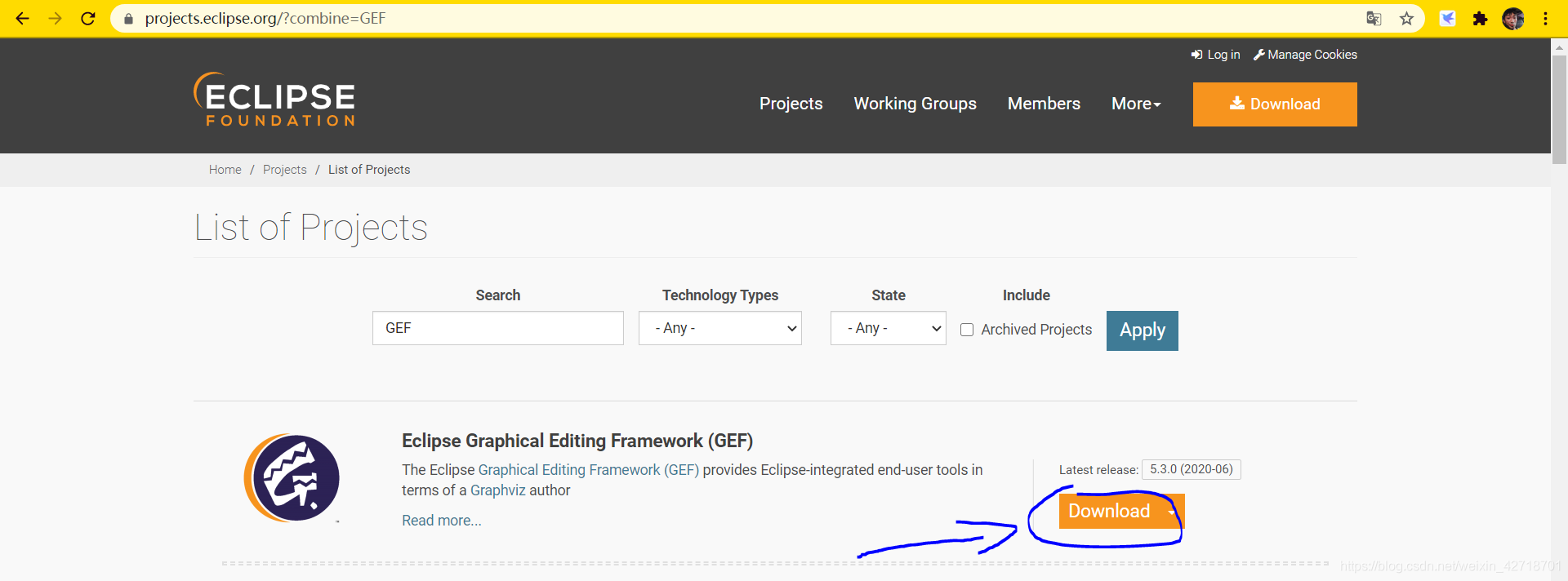

Click Download on the right

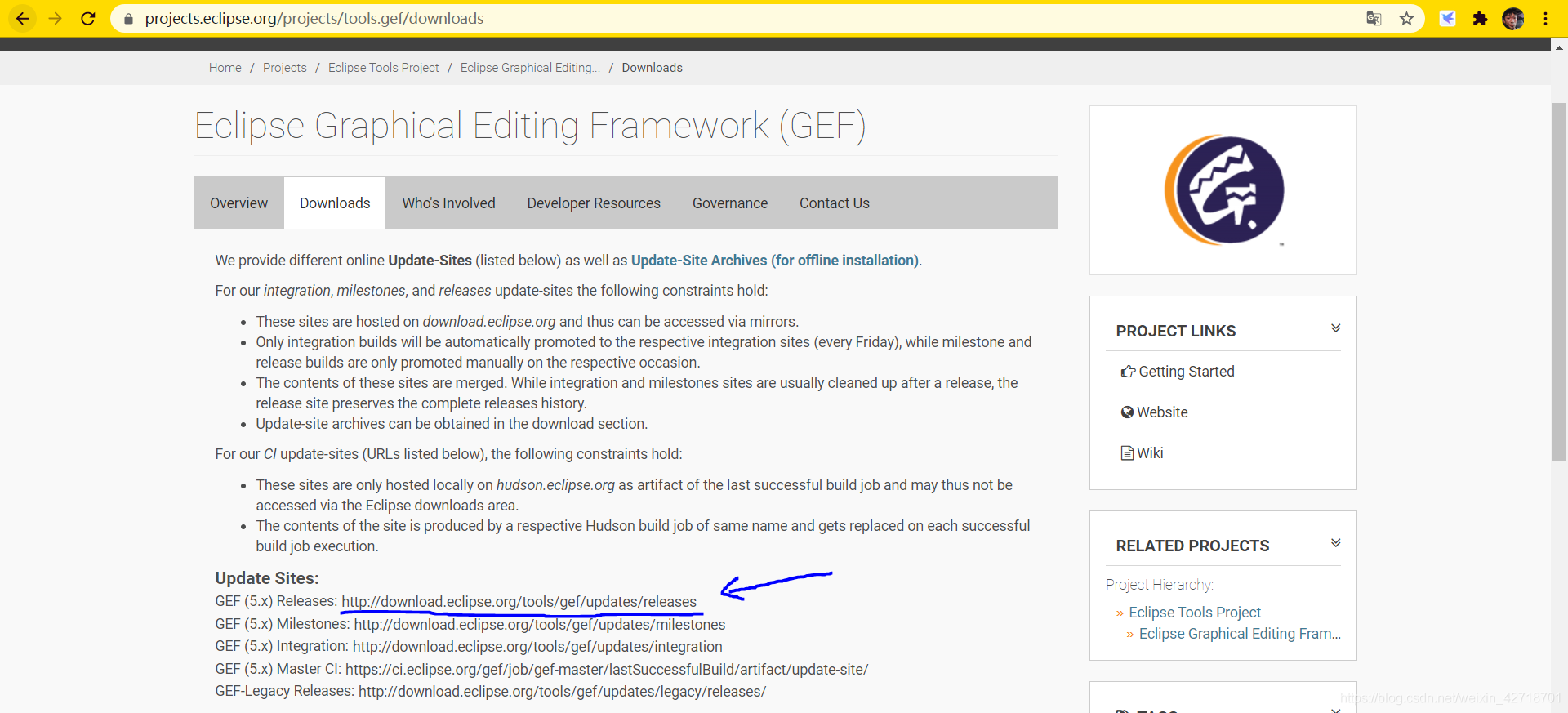

In the pop-up window, copy the download address

The current address is: http://download.eclipse.org/tools/gef/updates/releases

Open eclipse, click Help above, select install new software, paste the copied address, click Add, the plugin name can be empty

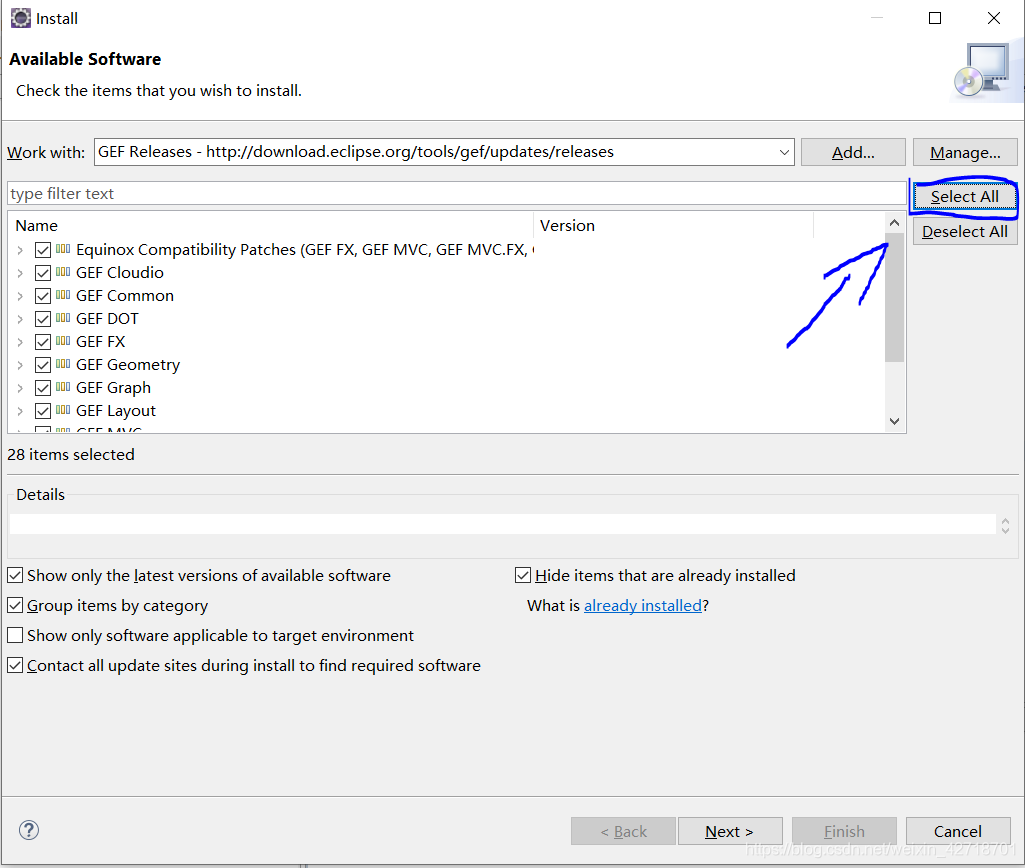

Select Select All (I don’t know which one I need, it’s not big to install all of them), then keep Next and accept on it

Install the AmaterasUML plugin

Download AmaterasUML_1.3.4

Download address: AmaterasUML_1.3.4

You can also go to the official website to download the latest version of AmaterasUML

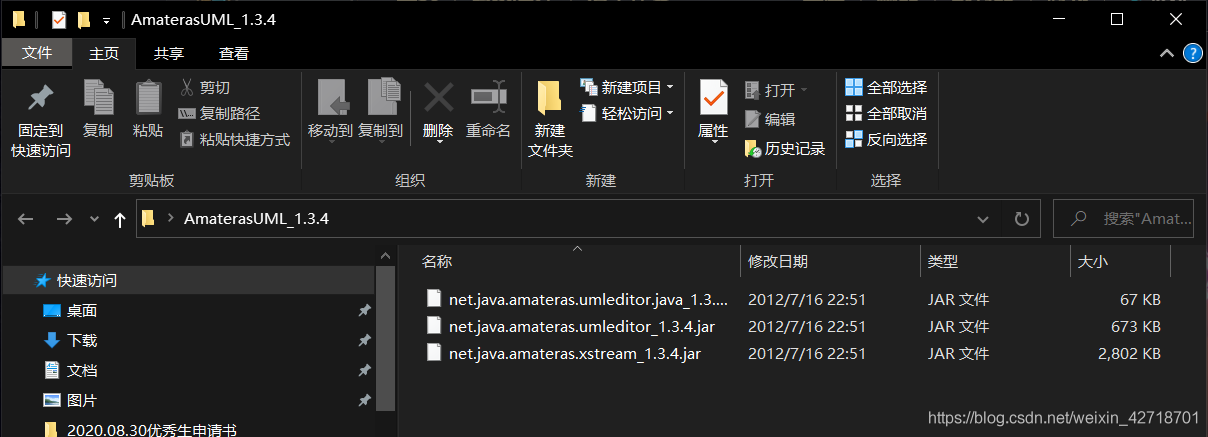

After downloading, unzip the package, there are 3 jar packages, copy them to the plugins directory of the eclipse installation directory, restart eclipse

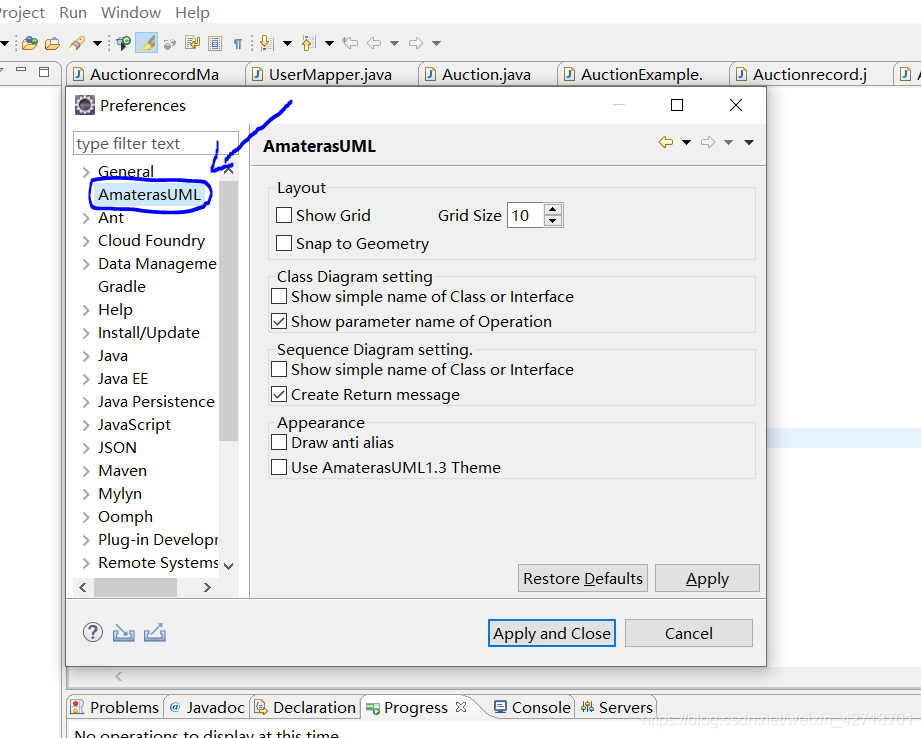

AmaterasUML can be seen via Window-Preference

Simple use of AmaterasUML

Right-click a project, New-Other, select Class Diagram, and click Next

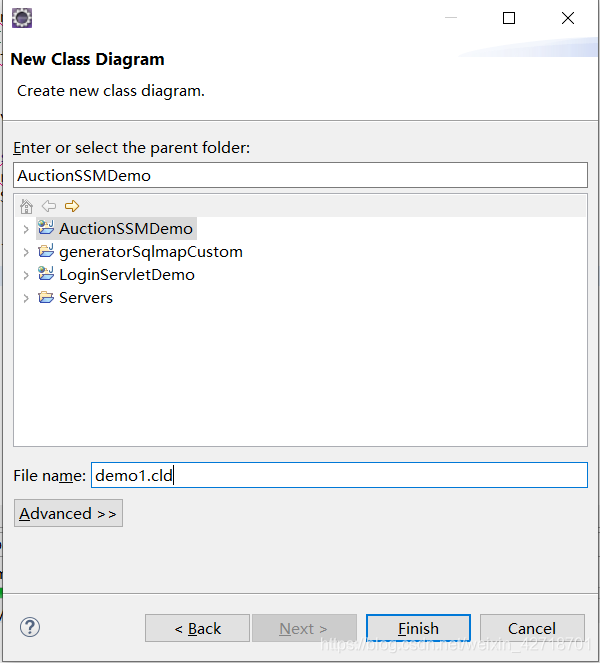

Give the class diagram a name and click Finish

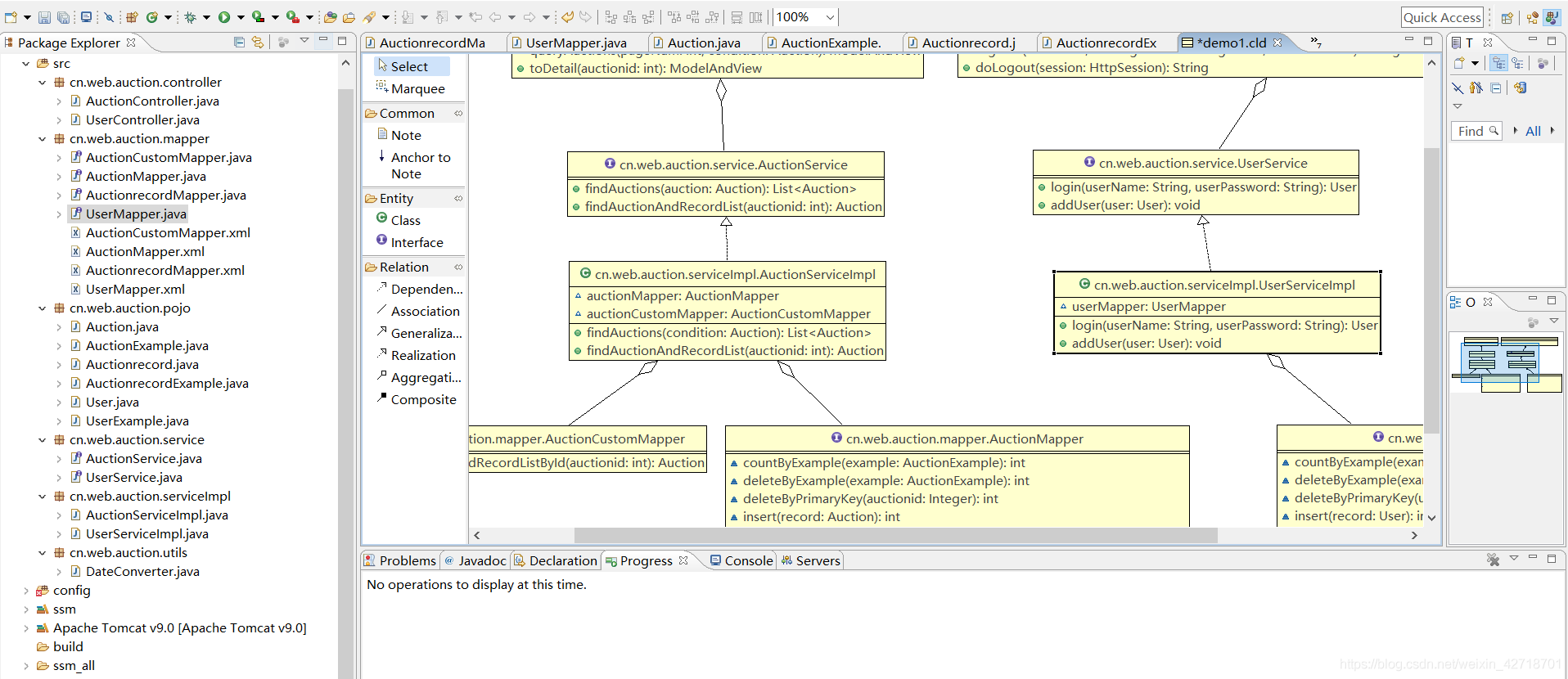

Then drag the class or interface into the interface, and the class appears magnificently
