Install Tomcat8 on Windows

Download the installation package

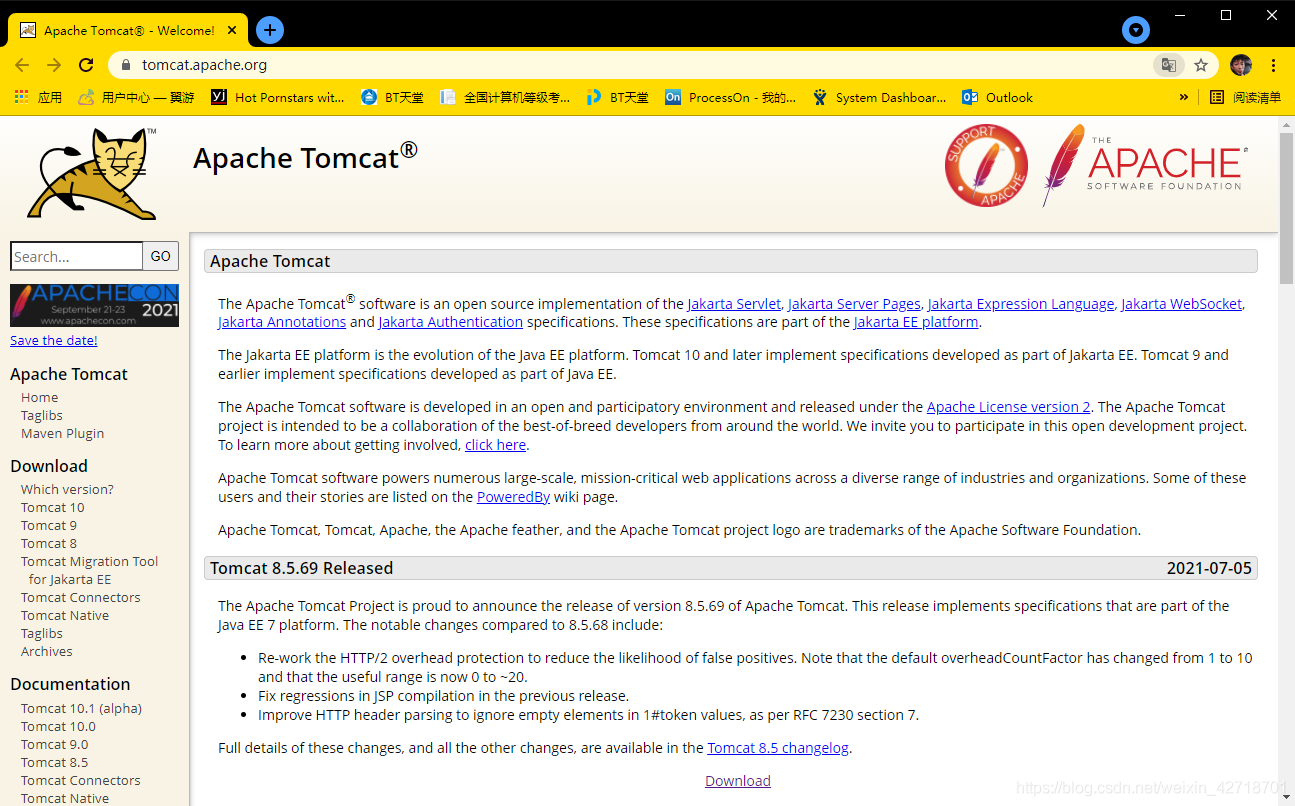

Visit Tomcat official website https://tomcat.apache.org/

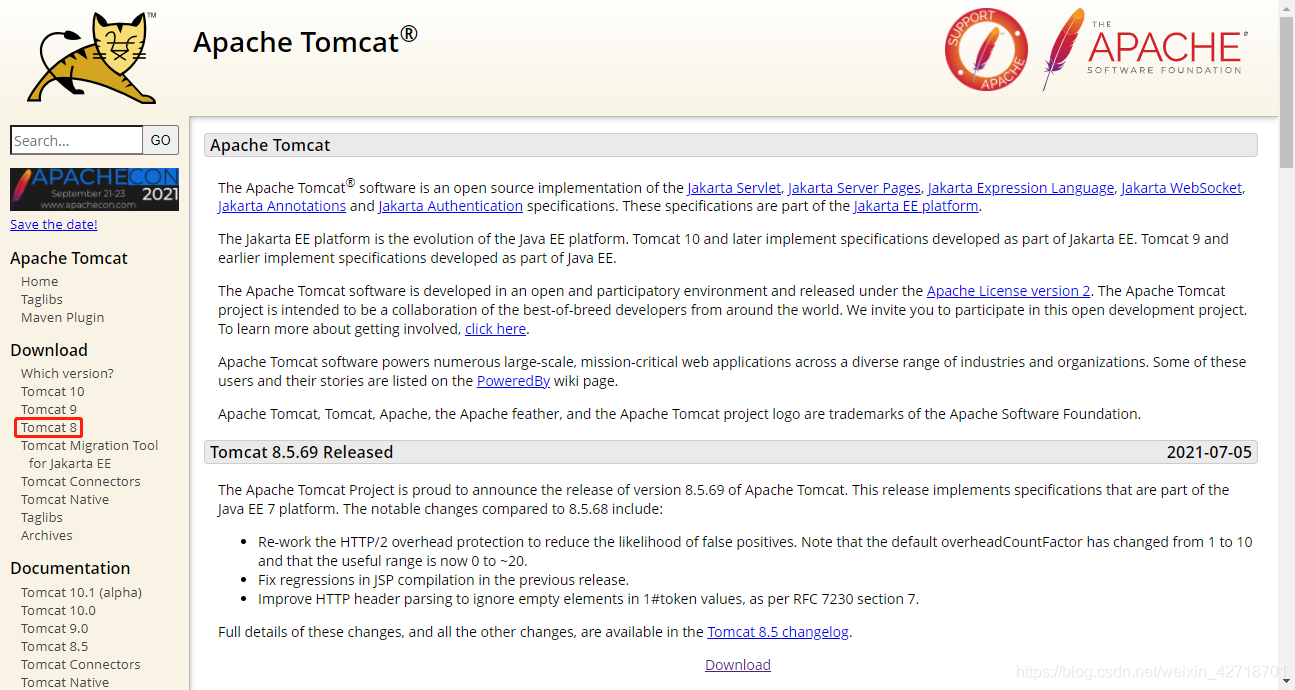

**Select the download version in the Download column on the left, the version selected here is Tomcat8, click into **

Choose the corresponding version to download according to your system version, here choose the Windows 64-bit operating system version, as shown in the picture click download

Install Tomcat8 (the downloaded zip package is the installation-free version, you can use it directly after decompression)

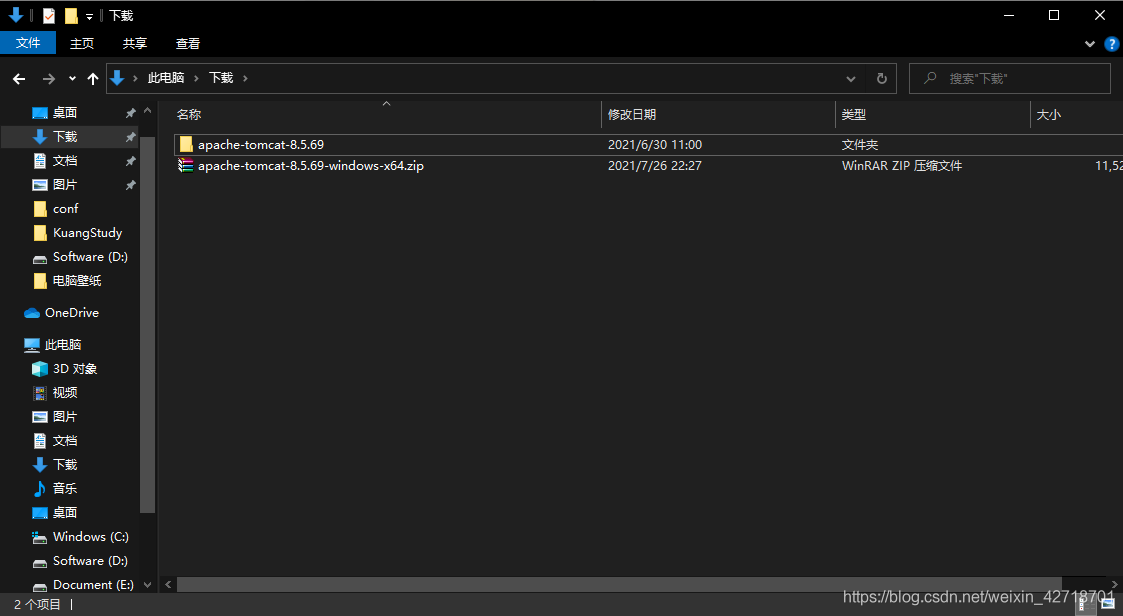

Unzip the downloaded file

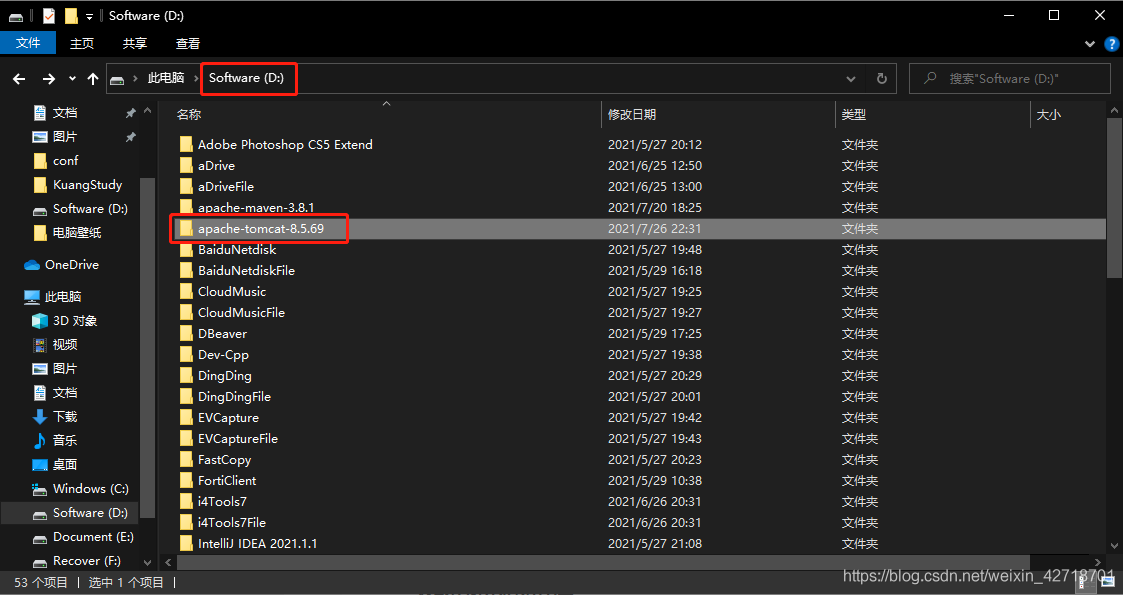

Place the unpacked files on the D drive

Configure environment variables

Right-click on properties on this computer and open settings

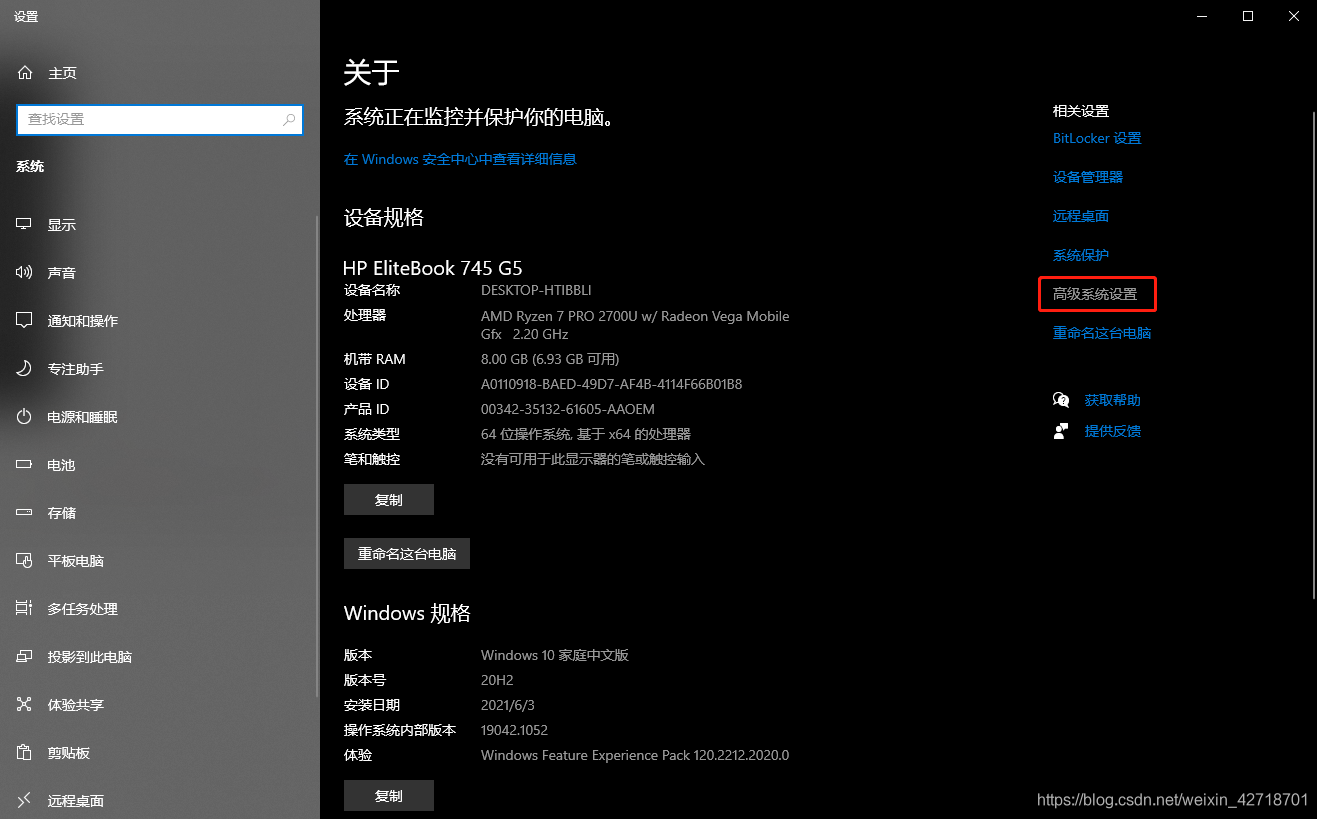

Click on Advanced System Settings to open System Properties

Click on environment variables to open environment variables

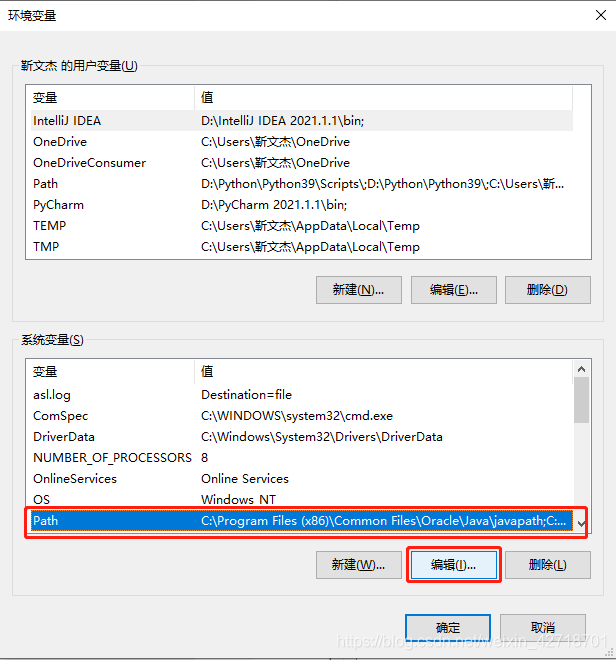

Select path and click edit to enter the edit path variable page

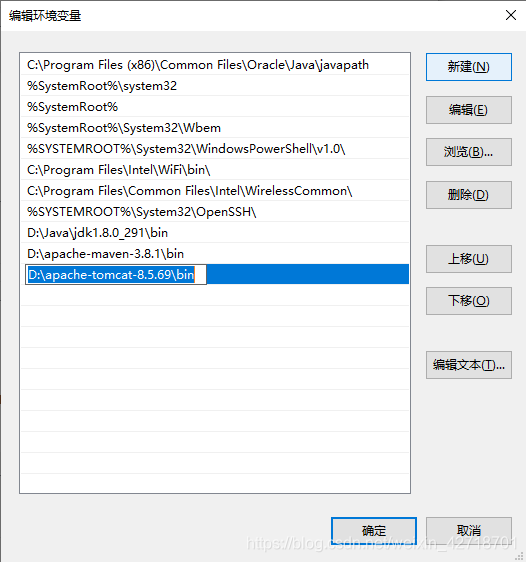

Click New, enter the directory of the bin folder under the installation directory of Tomcat8, click OK, OK, OK

Run the command

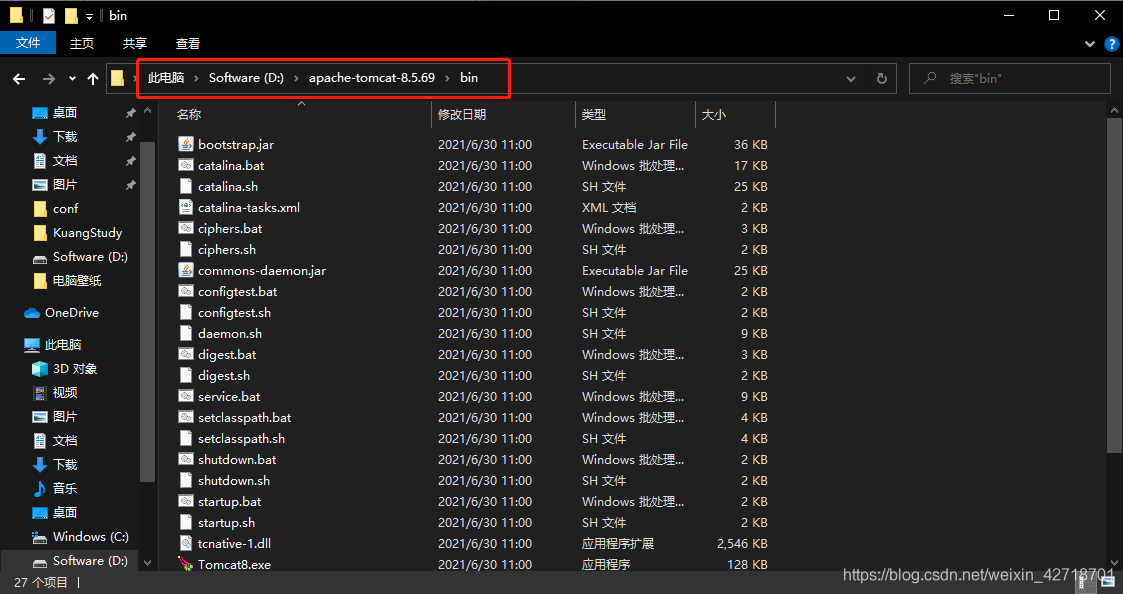

Go to the bin folder in the Tomcat8 installation directory

Click on the address bar, type cmd and enter to open a command line window

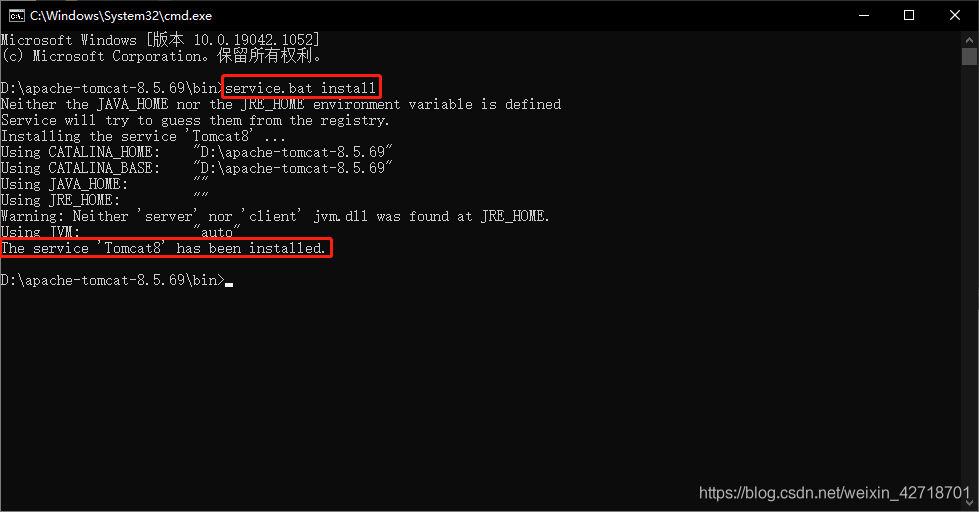

Type service.bat install in the command line window and enter

The installation is successful if the picture is displayed

Test whether it is successful

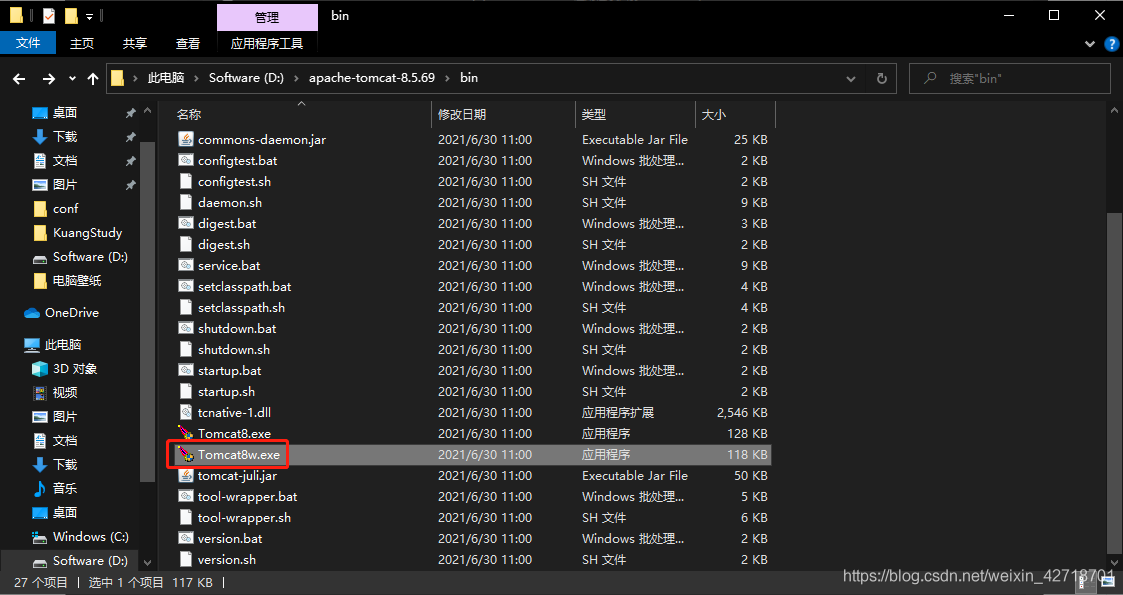

Double-click to run the Tomcat8w.exe file in the bin folder to open the startup window

Click Start to start Tomcat8

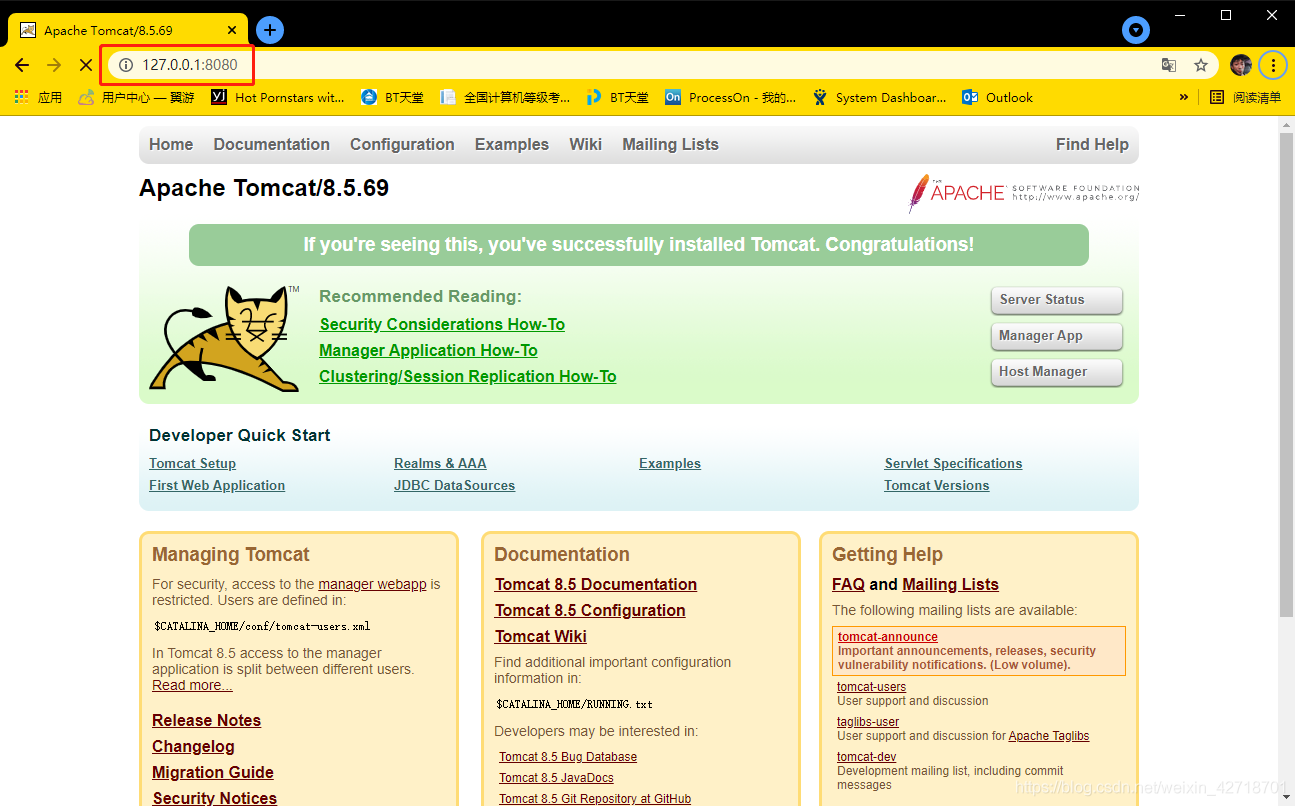

Open the browser, enter 127.0.0.1:8080 to access the following screen is a successful installation
